Nānā Huahana

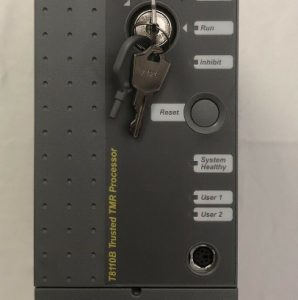

Hāʻawi kēia palapala i ka ʻike maʻamau no ka Trusted® Processor Interface Adapter T812X. Hāʻawi ka Adapter i ke ala maʻalahi i nā awa kamaʻilio o ka Trusted Triple Modular Redundant (TMR) Processor (T8110B & T8111) ma ka Chassis Controller no ka Distributed Control System (DCS) a me nā loulou ʻē aʻe. Hoʻohana pū ʻia ka ʻāpana e hiki ai i kekahi mau mea hoʻonui i loaʻa ma ka Trusted TMR Processor me nā mea pono no ka loaʻa ʻana o nā hōʻailona hoʻonohonoho manawa IRIG-B, hiki ke hoʻohana i ka Dual ('enhanced') Peer to Peer a hiki i ka Trusted System ke lilo i MODBUS Master.

Nā hiʻohiʻona:

• Hāʻawi maʻalahi i nā ʻōnaehana waho e kamaʻilio me kahi Kaʻina TMR Trusted. • Hoʻokomo maʻalahi (hoʻopili pololei i ka hope o ka Chassis Controller). • Elua RS422/485 configurable 2 a 4 uea hookui. • Hoʻokahi RS422/485 2 pili uea. • Nā hoʻokuʻi hewa / hāʻule no nā Kaʻina Hana Hana a me ka Standby. • Hoʻopili diagnostics processor. • PSU pani pani kiaʻi pili. • Ke koho no ka hoʻohui ʻana i nā hōʻailona hoʻonohonoho manawa IRIG-B122 a me IRIG-B002. • Koho e hiki ai i ka MODBUS Master ma ka Trusted Communications Interface.

Hoʻolālā ʻia ka Trusted Processor Interface Adapter T812x e hoʻopili pololei ʻia i ka hope o kahi kūlana TMR Processor Trusted ma kahi Trusted Controller Chassis T8100. Hāʻawi ka Adapter i kahi pilina pili kamaʻilio ma waena o ka Trusted TMR Processor a me nā ʻōnaehana mamao. Hāʻawi ka Adapter i ke koho o ka hoʻopili ʻana i nā hōʻailona hoʻonohonoho manawa IRIG-B i ka Processor. ʻO ka pilina ma waena o ka Adapter a me ka Trusted TMR Processor ma o ʻelua 48-way DIN41612 E-type connectors (SK1), hoʻokahi no ka pili ʻana i ka Active and Standby Processors.

Aia i loko o ka Adapter kahi PCB kahi i kau ʻia ai nā awa kamaʻilio, nā mea hoʻohui IRIG-B a me nā kumu ʻelua SK1 (nā mea hoʻohui i ka Active/Standby Trusted TMR Processors). Aia ka Adapter i loko o kahi pā metala a ua hoʻolālā ʻia e ʻoki ʻia i ka mea hoʻohui kūpono ma hope o ka Chassis Controller. Hāʻawi ʻia nā pihi hoʻokuʻu e hiki ai i ka Adapter ke wehe. ʻO nā awa kamaʻilio i loaʻa ma ka Adapter he uea RS422/RS485 2 ma Port 1, a me RS422/RS485 2 a i ʻole 4 uea.
